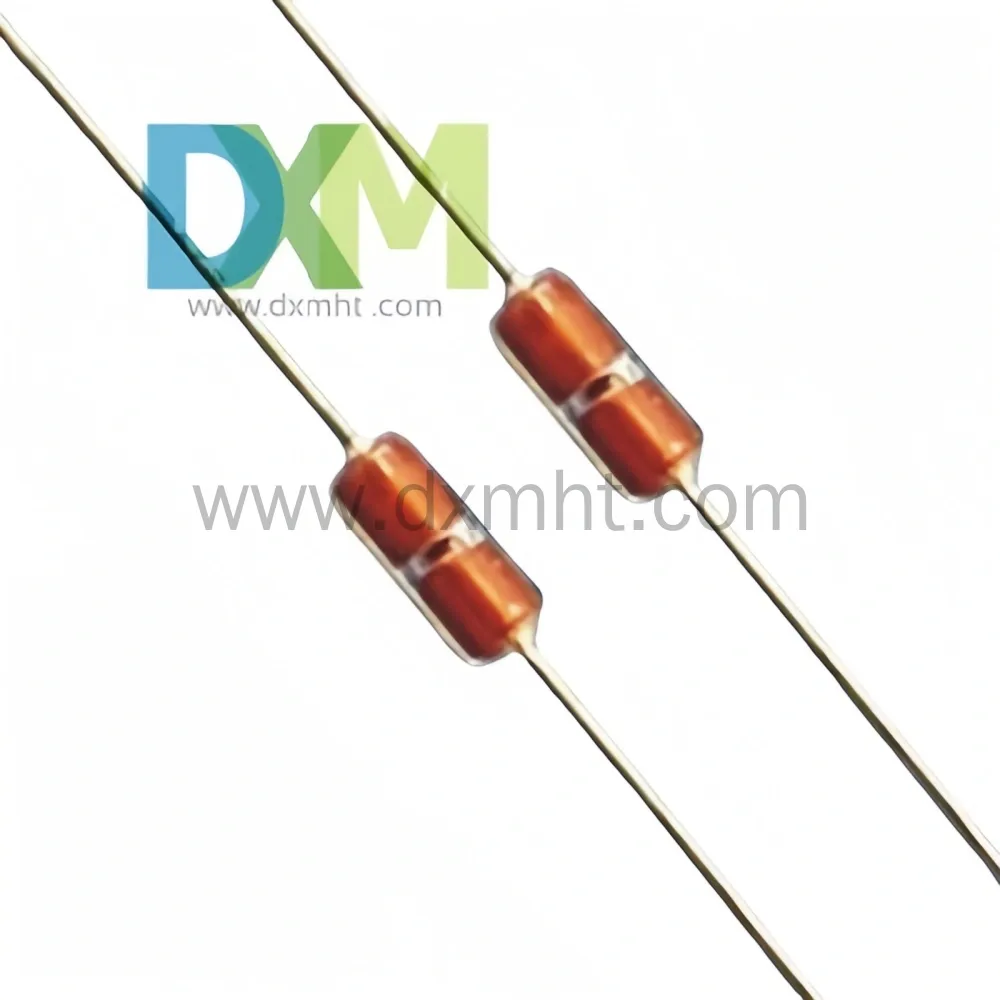

MF58 NTC Thermistor for Temperature Control with Glass Encapsulated
● High Precision and Sensitivity: Accurate temperature control with precise resistance values.
● Wide Temperature Range: Operates effectively between -55℃ and +300℃.
● Durable and Compact Glass NTC: Glass encapsulated resistants to heat and moisture.
● Wide Applications : MF58 NTC Perfect in industrial and consumer electronics.
● Cost-Effective, RoHS Compliance: Offers a practical, economical choice for temperature control.
-
MF58 NTC Thermistor Overview
The MF58 NTC Thermistor series are high-precision, glass-encapsulated components designed for effective temperature controlacross a wide range of applications. This MF58 thermistor is glass encapsulated and made by technics of ceramic combined with semiconductor. Offers a practical and economical solution for temperature-sensitive environments, with a significant resistance change across temperatures from -55℃ to +300℃.
Applications of MF58 Thermistor
The MF58 NTC thermistor is widely used in various applications, including:
- Temperature Control of Rechargeable Battery Packs and Chargers: Ensures safe charging by monitoring temperature.
- Temperature Compensation in Instrument Loops, Integrated Circuits, Crystal Oscillators, and Thermocouples: Maintains accuracy in various devices.
- Industrial, Medical, and Environmental Equipment: Provides reliable temperature control for critical processes.
- Office Automation Equipment: Enhances performance in printers, copiers, and other office devices.
- Home Appliance Temperature Control: Used in induction cookers, pressure cookers, rice cookers, electric ovens, disinfection tanks, water dispensers, microwave ovens, electric stoves and more for precise temperature management.
-
Application Example of mf58 NTC for temperature control:
Advantages of NTC Thermistor MF58
The MF58 NTC thermistor offers several key advantages:
- 1.Practical and Economical: Cost-effective solution for temperature control.
- 2.Compact and Durable: Small dimensions and solid construction convenient for automatic installation.
- 3.High Stability and Reliability: Ensures consistent performance in demanding environments.
- 4.High Precision: MF58 NTC Offers accurate resistance and B value of thermistor, crucial for precise temperature control.
- 5.Fast Response: Fast heat induction, high sensitivity
- 6.Wide Resistance Range: From 0.1 to 5000KΩ, suitable for various applications.
- 7.Glass Encapsulation: Resists heat and moisture, operating effectively in high-temperature and moisture environments.
- 8.Wide Operating Temperature Range: Capable of functioning from -45℃ to +300℃, suitable for extreme environments.
- 9.RoHS Compliant: Environmentally friendly and adheres to global standards.
Key Features of MF58 NTC Thermistor
MF58 Thermistor Datasheet
Parameter Specification Rated Power ≤50mW Operating Temperature Range -55°C to +300°C Rated Zero-power Resistance Value (R25) Various (0.1~5000KΩ) Resistance Tolerance ±1%, ±2%, ±3%, ±5% B value of thermistor (25/50℃) 3270K to 5050K Thermistor b value Tolerance ±1%, ±2% Dissipation Factor ≥2.0mW/℃ Thermal Time Constant ≤7 seconds MF58 NTC Thermistor Dimensions
The MF58 thermistor is available in various dimensions to suit different application needs. Below is an example of standard dimensions:
Dimension(Unit: mm):
MF58 NTC Selection Guide
When selecting an NTC thermistor from the MF58 NTC series, consider the following factors:
- Nominal Resistance (R25): Choose based on your specific application needs..
- Tolerance Range: Options include F (±1%), G (±2%), H (±3%), J (±5%).
- B Value of Thermistor: Choose based on temperature accuracy requirements (e.g., mf58 3950 for high precision).
- B Value Tolerance: Options include F (±1%) and G (±2%).
- Lead Shape: Available in straight or inward bend shapes.
Working Principle of MF58 NTC Thermistor
The MF58 NTC thermistor operates by decreasing its resistance as the temperature increases. This characteristic allows it to be used effectively in temperature control circuits, providing accurate temperature control and stable performance across a broad temperature range.
Working principle of ntc mf58:
NTC MF58 Naming Rules
Marking of Part Number NTC Thermistor for temperature control:
1.Series: Glass encapsulated MF58 NTC Thermistor for temperature control
2.Resistance R25：503-50KΩ, 40.27K-40.27KΩ.
3.Tolerance：F (±1%), G (±2%), H (±3%), J (±5%).
4.B value of thermistor：3950-3950K, 3380-3380K.
5.Thermistor B value tolerance：F (±1%), G (±2%).
6.NTC thermistor B value category：A (25/50℃), B (25/85℃).MF58 NTC Thermistor Model List
-
Specification&Part no.:
Item Part No. of MF58 Thermistor Resistance @25℃
（R 25）
B value of thermistor Rated
Power
（mW）Operating
Temperature
（℃）Thermal
Time
Constant
(S)Dissipation
Factor
(mW/ ℃)Resistance
（KΩ）Tolerance
(±%)NTC Thermistor
B value(K)
Tolerance (±%) 1 MF58-502□3470□A 5 1,2,3,4 3470 0.5,1,2 ≤50 -45℃~ +250℃ ≤10
In still air≥2.0
In still air2 MF58-5.369K□3434□A 5.369 3434 3 MF58-103□3270□A 10 3270 4 MF58-103□3435□B 10 3435 5 MF58-103□3470□A 10 3470 6 MF58-103□3550□A 10 3550 7 MF58-103□3600□A 10 3600 8 MF58-103□3630□A 10 3630 9 MF58-103□3700□A 10 3700 10 MF58-103□3899□A 10 3899 11 MF58-103□3950□A 10 3950 12 MF58-10.74K□3434□A 10.74 3434 13 MF58-203□3950□A 20 3950 14 MF58-223□3850□A 22 3434 15 MF58-303□4020□A 30 4020 16 MF58-40.27K□3900□A 40.27 3900 17 MF58-473□3950□A 47 3950 18 MF58-49.12K□3955□A 49.12 3955 19 MF58-503□3800□A 50 3800 20 MF58-503□3930□A 50 3930 21 MF58-503□3950□A 50 3950 22 MF58-503□3990□A 50 3990 23 MF58-503□4050□A 50 4050 24 MF58-58.5K□3942□A 58.5 3942 25 MF58-98.63K□4016□A 98.63 4016 -30℃~ +300℃ 26 MF58-104□3700□A 100 3700 27 MF58-104□3899□A 100 3899 28 MF58-104□3930□A 100 3930 29 MF58-104□3950□A 100 3950 30 MF58-104□3990□A 100 3990 31 MF58-104□4050□A 100 4050 32 MF58-104□4120□A 100 4120 33 MF58-104□4200□A 100 4200 34 MF58-204□3899□A 200 3899 35 MF58-204□4200□A 200 4200 36 MF58-204□4260□A 200 4260 37 MF58-204□4320□A 200 4320 38 MF58-231.4K□4170□A 231.4 4170 39 MF58-504□4250□A 500 4250 40 MF58-504□4050□A 500 4050 41 MF58-105□4400□A 1000 4400 42 MF58-1.388M□4500□A 1388 4500 43 MF58-3.78M□4700□A 3780 4700 Remarks: First □ for filling in code name of resistance tolerance;Second □ for filling in code name of B value tolerance.
-
MF58 NTC Thermistor User Reviews and Conclusion
MF58 Thermistor User Reviews
Users appreciate the NTC MF58 thermistor for its reliability, precision, and durability. It’s widely recognized for its high performance in temperature control applications, making it a preferred choice in both industrial and consumer electronics.
MF58 NTC Conclusion
The MF58 NTC thermistor is an effective and economical solution for temperature control across a wide range of applications. Its precise resistance values, wide operating temperature range, and strong build quality make it an excellent choice for ensuring stability and accuracy in various electronic systems. It is practical, economical, and ideal for temperature-sensitive environments, making NTC MF58 thermistor a reliable choice for both industrial and consumer electronics.
-
